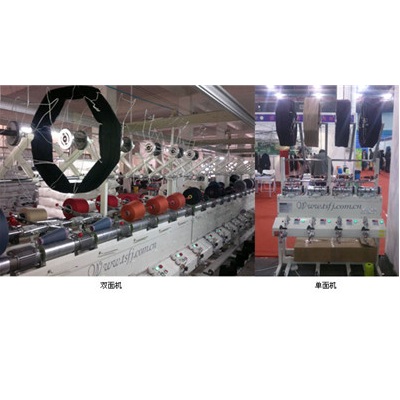

Machine Application:   TS008P Hank to cone winding machine is for winding yarns from Hank to Cone, they are applied to the processes such as warping, knitting and yarn combining etc..  Feature: 1. Drive: every spindle per motor 2. Winding speed: 300-500 M/min 3. Has function of auto stop when yarn break. 4. Package Dia≤ 250mm; Take-up Traverse: 150mm; 5. Each spindle with length counter; 6. Advanced control panel;

Technical parameters：

Bobbin type: 6"(170mm) Layout Double-side, can be 12-96 spindles Power Supply Three phases 380V 50/60HZ Driving Every spindle per motor Power Comsumption 0.09KW/spindle Take-up package Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15 Yarn tension and waxing device Every spindle has a yarn tension and waxing device Auto Stop Device Each spindle install auto stop device Electronic Anti-Stack Inverter control Cleaner device Every spindle has a Mechanical Knife yarn cleaner Electronic Yarn Cleaner Optional installed Air Splicer Optional installed Lighting System Optional installed Dimensions L 13700 x W 1050 x H 1650 mm
