| Detailed Trade Lead Description |
Machine Application:

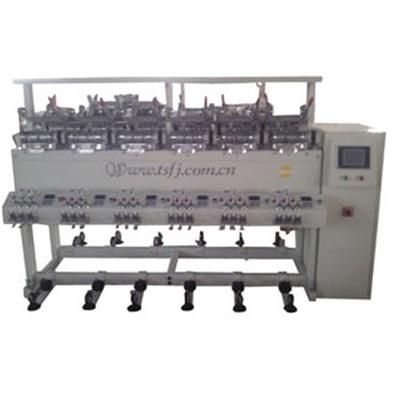

TS008B Doubling Winder Machine, it can winding 2-3 ply of Fiber yarns, Cotton yarns, Wool yarns, FDY, Polyester yarns and etc, it can take up with Tube bobbins for TFO twisting machine preparing, and also can take up with conical Cone for Weaving machine using . It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labour for next processing work.
Equipments:
Inverter(MITSUBISHI Brand), Drum(Superplastic Alloy), Motor(Ningbo), Controller(HangZhou)
Parameters:
1. Drive: every spindle per motor
2. Winding speed: 300-800 M/min
3. Has function of Auto stop when yarn break.
4. Each spindle with length counter;
5. Advanced control panel;
|
|
Technical parameters：
|
Bobbin type
|
6"(170mm)
|
Layout
|
Double-side, 12-96 spindles
|
Spindle Gauge
|
280mm
|
Power Consumption
|
0.09KW/spindle
|
Doubling No. of yarns
|
2-3 plys
|
Take-up package
|
Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15
|
Package Diameter
|
Max．φ220mm
|
Auto Stop Device
|
Each spindle install auto stop device
|
Electronic Anti-Stack
|
Inverter control
|
Air Splicer
|
Optional installed
|
Blower cleaner
|
Optional installed
|
Lighting System
|
Optional installed
|
Dimensions
|
L 16800 x W 1350 x H 1600 mm
|
|
|
|
|
| |
