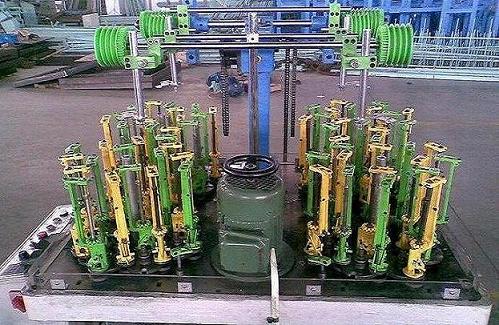

| JC 4-16 High Speed Braiding Machine |
| Post Date :2011-10-27 |
| Expire Date :2009-05-21 |
 View Basket |
| JC 4-16 |
| Detailed Trade Lead Description |
| Performance and assort
High speed braiding machine is an equipment with high exactitude, high efficiency , low wastage and low noises, which absorbs foreign various advanced technique and combines with the present technical level in our country. It is applied to producing a variety of rope ribbons, shoestrings, flex, decorative ribbons and tensile.
Adopt the advanced way of frequency conversion regulation and control, apt to control rotational speed, and in the braiding spindle qualify for the next round of competitions some office device hang industry of entering etc. Replace the punching type operation with porcelain eyes(alumina), operate simple and easily when changing the line. The applicable raw materials are also very wide. It is difficult to break when weaving, and not to fray the raw materials surface, after weaving, there is higher quality naturally, if there are products of warp-heart, can use material shelf automatically, no matter what size is the warp-heart can be correct deliveried dosage. When run out of the warp-heart or break the line, the machine will stop turning round automatically. So under the unattended situation, that is also very comfortable for the machine running, in order to increase the output and lower costs.
The applicable raw materials are very wide, it is suitable for wool, chemical fiber, pp yarn, wire, etc. it is applied to producing a variety of columned belts, flat belts, curtain ribbons, silk ribbons, decorative ribbons, wires and the other spandex and non-spandex ribbons.
MAIN TECHNICAL PARAMETERS:
Model JC4/16
Heads 4
Number of spindle 16
Max. R.P.M horn gear 360
Motor power 0.75
Input voltage 380V
Machine size(mm)(L*W*H) 1.2*1.3*1.45
Bobbin size(mm)(D*H) 48*140
|
|
|
