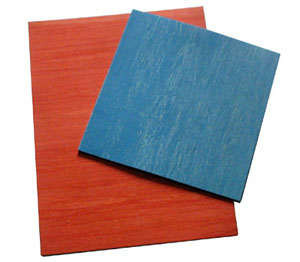

IG-004 Compressed Non-asbestos Jointing Sheet
Manufactured from Kevlar fiber, with oil-resistant rubber filler and compressed into sheets, these materials are suitable for use as an oil-resistant jointing medium for heat installations and engine sealing.
This item is suitable for Services:
Flange Gaskets Seals. Pipeline seals, Valve seals, Water, saturated steam, mild chemicals, refrigerants, oils, fuels, Gasoline etc..
Standard Size And Thickness:
1000mm L x 1500mm W x 0.4mm~6.4mm T
2000mm L x 1500mm W x 0.4mm~6.4mm T
1350mm L x 1500mm W x 0.4mm~6.4mm T
1270mm L x 1270mm W x 0.4mm~6.4mm T
1270mm L x 3810mm W x 0.4mm~6.4mm T
Color:White,Blue,Green,Black,Gray etc..
The width is available to width 1520mm. Length 4100mm.
Also we make this product with SUS304 wire reinforcement.
Model:
1) Maximum working pressure: 100 bar
2) Minimum working temperature: 370℃ (blue)
3) Maximum working temperature: 400℃ (black)
4) Compressibility (ASTM F36): 7 - 17%
5) Recovery (DASTM 13 16Hrs-300 D.C. - 50N/mm): minimum 40%
6) Gas infiltration (DIN 3535/4): 0.5ml/min
7) Immersion test (ASTM F146)
8) Immersion in ASTM oil#3 under 5hrs/150D.C.
9) Thickness increase: 10%
10) Tensile strength: 8N/mm
11) Sulfuric acid under 48 Hrs/23D.C.
12) Density (DIN3754): 1.8-1.9g/cm3
13) PH value: 2 – 14
YuYao IceGan Seals & Gaskets Factory
