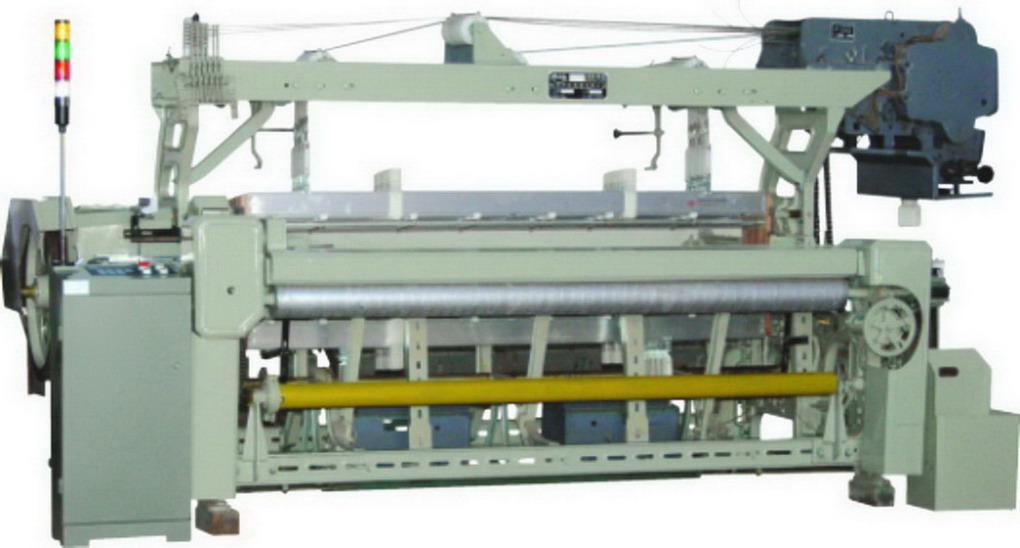

| GA798 Rapier Loom |
| Post Date :2008-08-24 |
| Expire Date :2009-03-21 |
 View Basket |
| with mechanical dobby |
| Detailed Trade Lead Description |
| The product has patented. The loom is suitable chiefly to weave the fabrics made of cotton and blended yarns, it is capable of weaving small jacquard fabrics, the machine can accommodate a harness frame of 16 shafts.
GA 798 Flexible Rapier Loom The product has patented Technical Specification
Metric reed width (cm) 190,200,210,230,250,280,330,360
Speed: 200-140r/pm
Yarn range: Cotton7Ne-60Ne Wool 12Nm-100Nm Man-made fiber 750D-30D
Power: 1.3-1.5Kw weaving machine special motor
Shedding : Upper mechanical dobby, spring reversing motion Maximum 4-20shafts healed frame
Weft insertion form: 6- Composite movement of four linkages with small eccentric, central transfer weft insertion
Beating –up motion: Long connecting crank beating-up mechanism
Warp let-off motion: Negative, beam disc diameter 600mm, screw to adjust space
Take up and rolling-up: Continuous winding, reel diameter 450mm
Warp stop:6 row electric warp stop
Weft stop Piezoelectricity model sensor control weft stop
Color-selector: Controlled by dobby, Maximally 6 colors for selecting weft
Selvage device: Leno selvage
Running operation Button switch is available at the both side of machine; it can be inching control, one-weft start, positioning stop and emergency stop
Electric control: Electromagnetic clutch and brake is controlled by chip microprocessor
Main machine: Adopting centralized lubrication.
|
|
|
| |
